Description

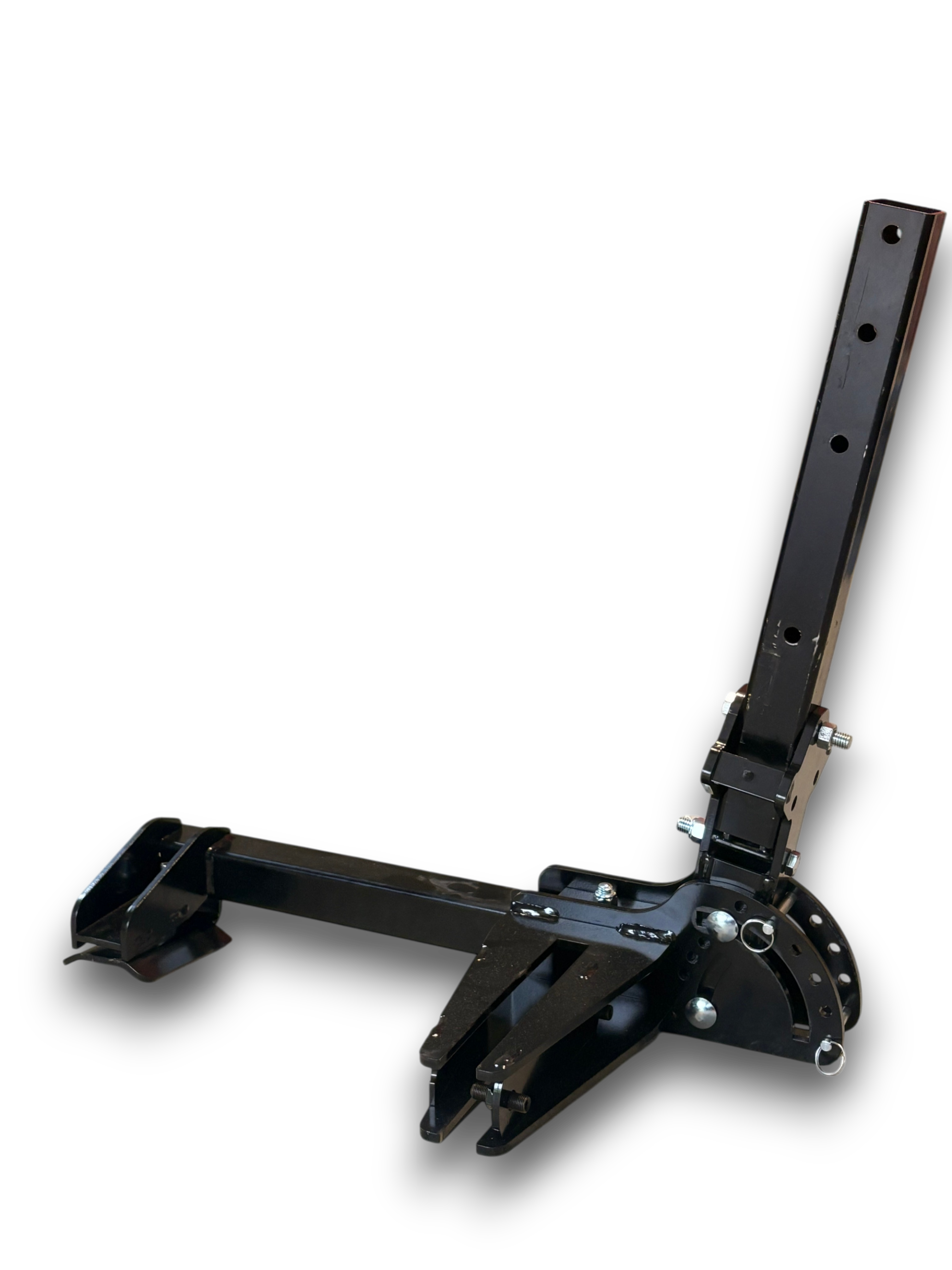

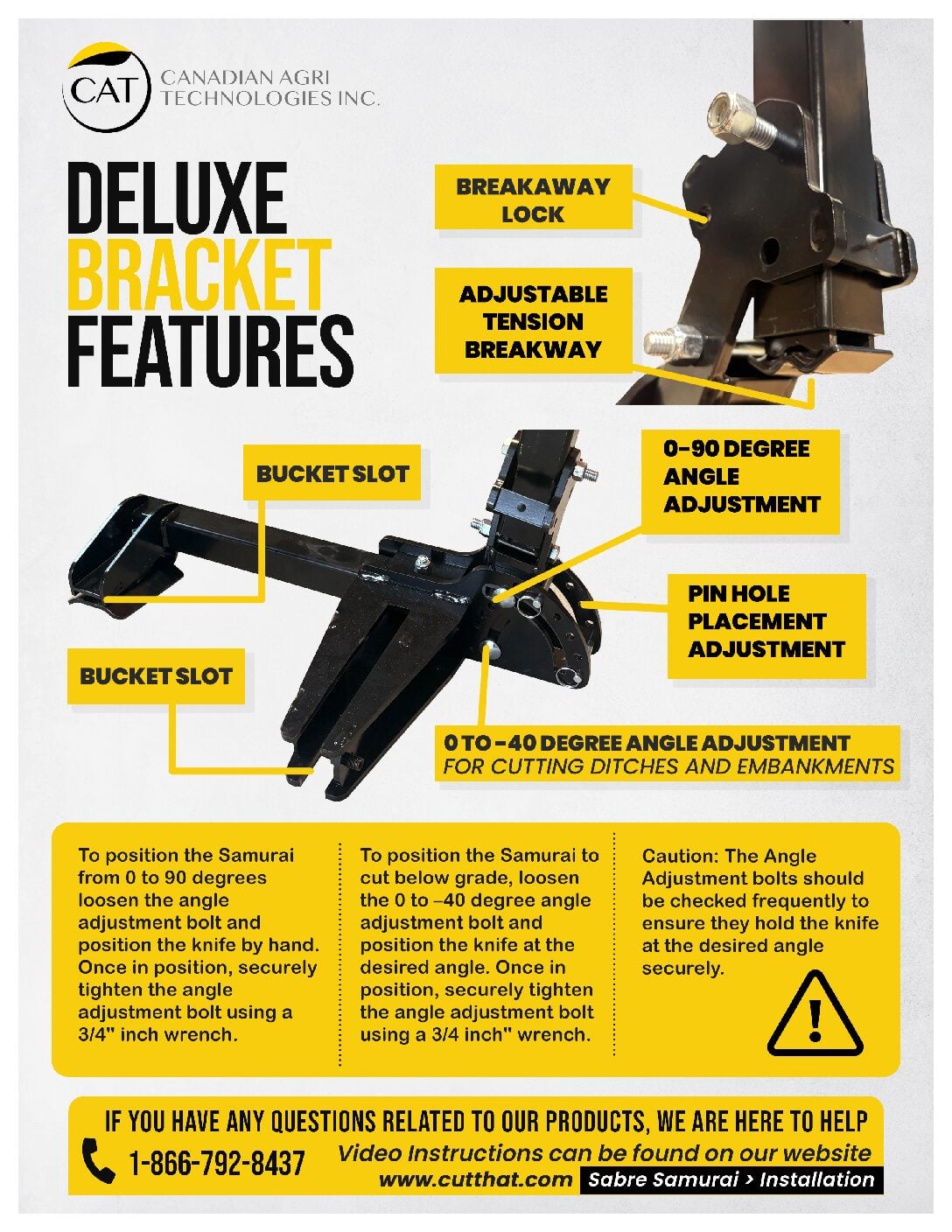

To position the Samurai from 0 to 90 degrees loosen the angle adjustment bolt
and position the knife by hand. Once in position, securely tighten the angle
adjustment bolt using a 3/4" inch wrench.
To position the Samurai to cut below grade, loosen the 0 to −40 degree
angle adjustment bolt and position the knife at the desired angle. Once in
position, securely tighten the angle adjustment bolt using a 3/4 inch" wrench.
Caution: The Angle Adjustment bolts should be checked
frequently to ensure they hold the knife at the desired angle securely.
