About Quick Attach Plate

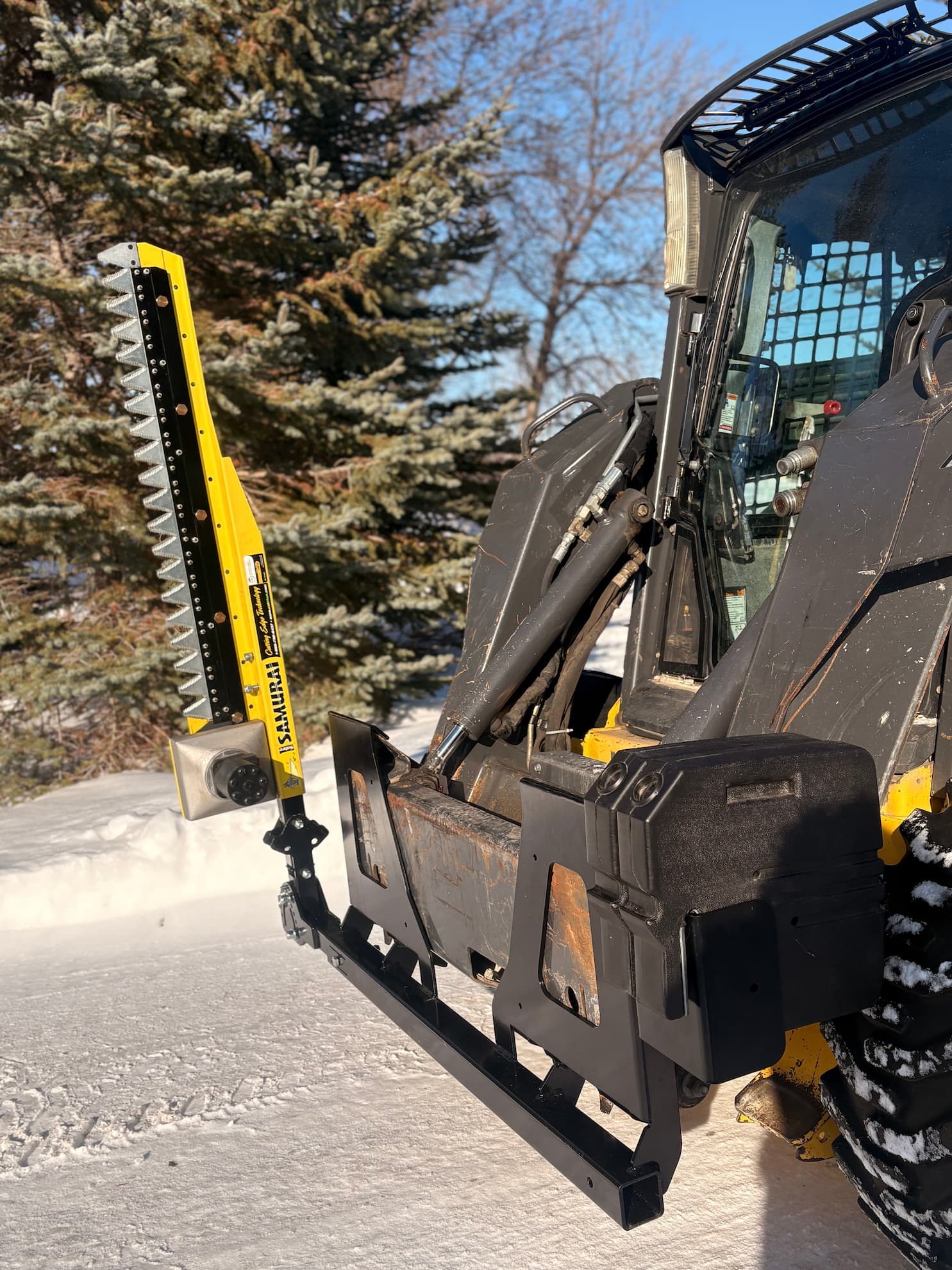

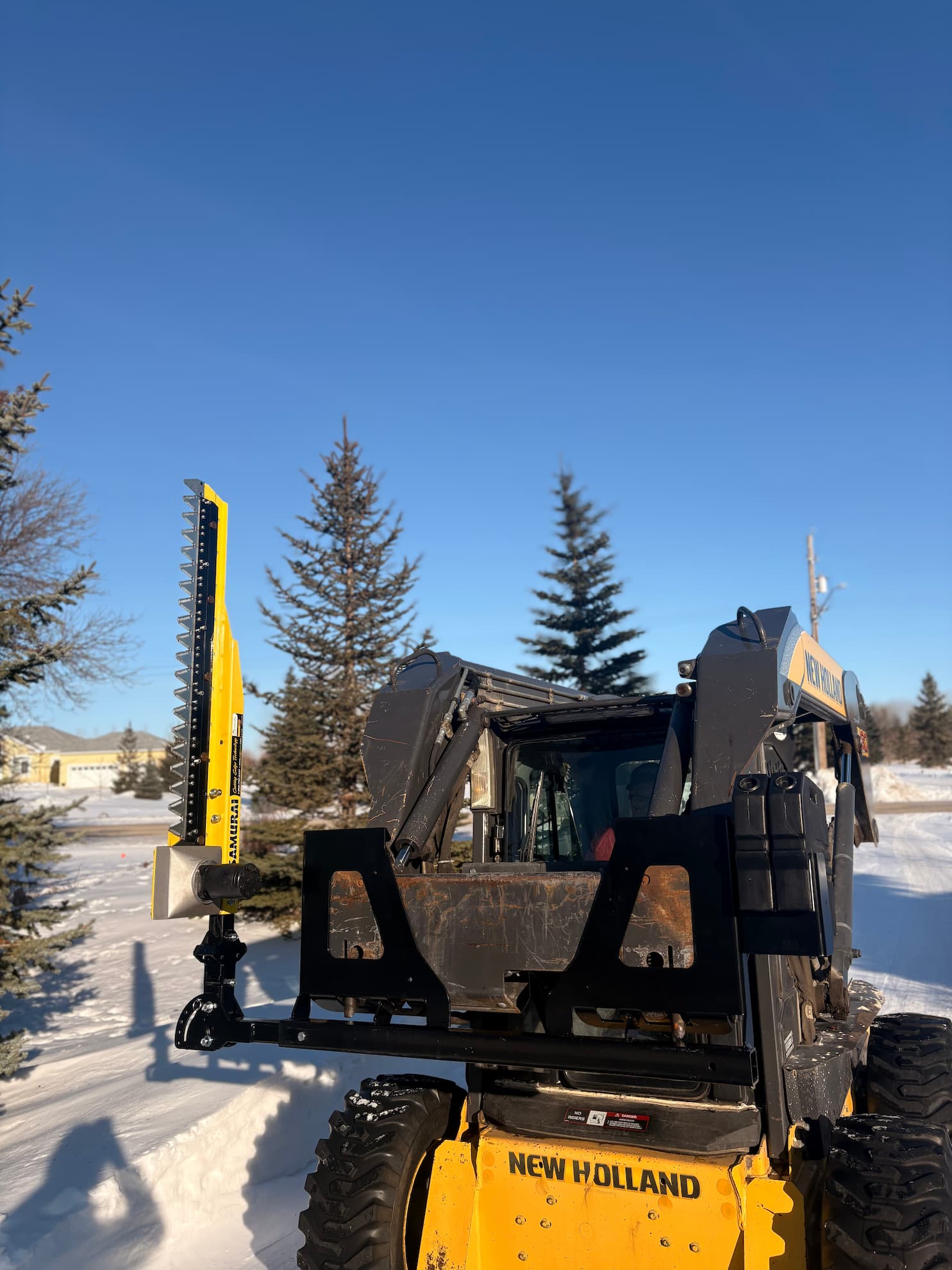

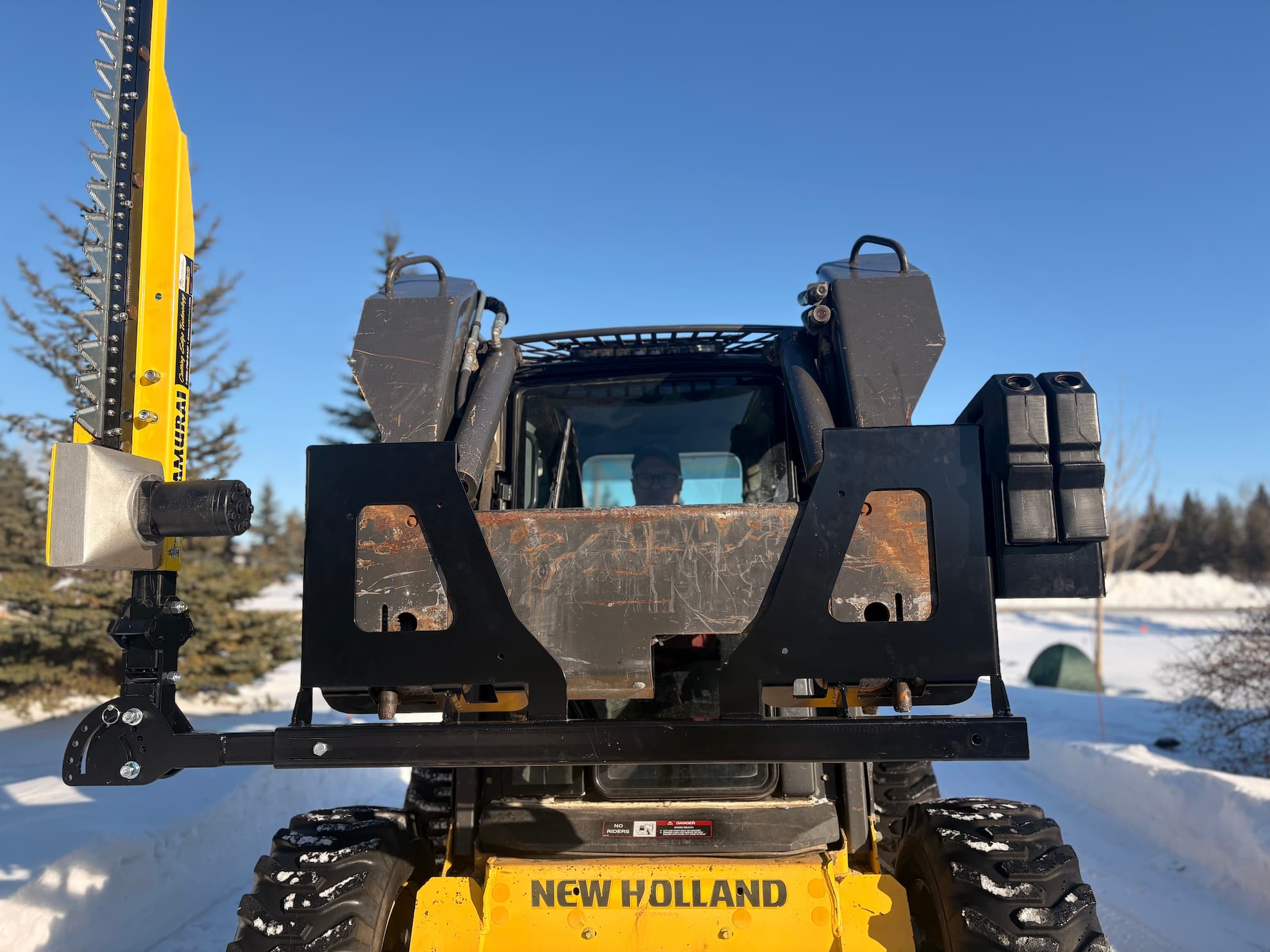

The Sabre Samurai Quick Attach Plate is delivered as a complete, ready-to-install package, including the Quick Attach Plate, Deluxe EZ-Mount Bracket, stand, and counterweight mount—engineered for strength, stability, and ease of use.
Deluxe EZ-Mount Bracket Installation
To install the Deluxe EZ-Mount Bracket, slide the bracket arm into the front left side of the 2″ × 2″ square feeder tube and tightly fasten the bolt. The bracket arm features multiple bolt-hole positions, allowing for adjustable lateral length to suit your setup.
Quick Attach Plate Installation
To install the Quick Attach Plate stand, slide the mounting stand into the front right side of the 2″ × 2″ square feeder tube and secure it using the supplied bolt.
Counterweight Mount Installation
The counterweight mount is installed by loosening each bolt and positioning the mounting plate. Once in place, securely tighten all bolts. Counterweights not included. Ensure each counterweight is firmly secured to prevent movement or detachment during operation.
