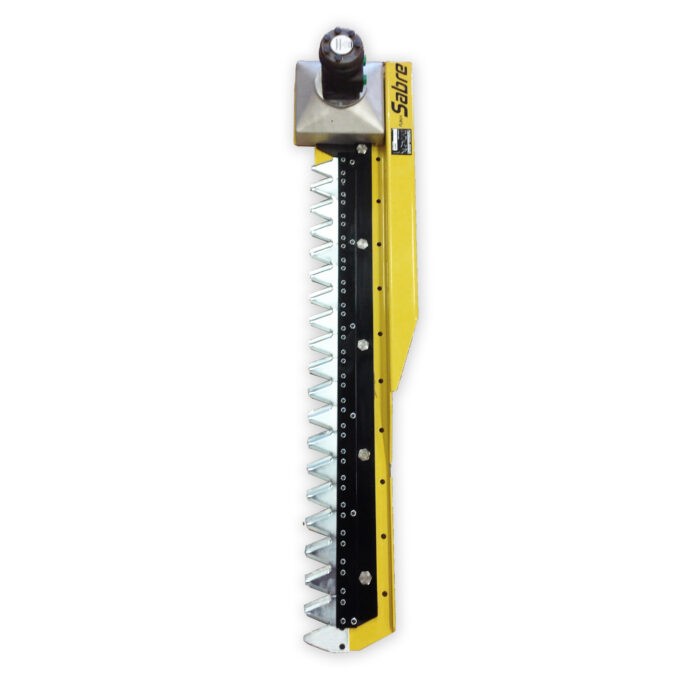

Sabre Vertical Crop Divider

Description

FEATURES

Give yourself an extra edge in tangled & lodged crops. See why the Sabre has been the number one selling vertical knife since 1983.

Quality of operation. Provides excellent cutting capabilities to separate the crop at the withdraw divider. Reducing crop toss and cutterbar plugging.
Power requirements: The Sabre Crop divider operates between 3.5-5 GPM (gallons per minute).
Easy installation. Simply acquire your hydraulic lines, install your cutter and your good to go!
For canola or other tough to harvest crops, the benefits of a vertical knife are well known. What sets the Sabre apart is design excellence, mechanical simplicity, and superb quality.
The Sabre vertical knife allows your swather to travel faster and cut cleaner. The cost of one machine can be recovered in a single season due to the increased yield.
The Sabre comes completely assembled and ready to install on your swather or combine header.
The Sabre Crop Divider 2″ sickle sections are manufactured in the USA to the specification of the Sabre Crop Divider.
Engineering review done by the Manitoba Research Council’s Industrial Technology Centre.
PAMI tested (Prairie Agricultural Machinery Institute) – report #477.

Customer Testimonials

David H from Hansboro, North Dakota, USA

We were having major feeding problems straight combining canola this fall, but after installing saber knives on one end of each of the heads, the canola fed into combines way better. Next year we’ll mount them on the left side of the heads also, and we’ll be able to cut any direction we want.

Sabre 2 multicutter Vertical Crop Divider mounted on a Gleaner 8200 Flex Header

Joe K from Winnipeg, Manitoba, Canada

The cutters worked very well as without them we had nothing but grief always things getting tangled on the ends which creates bunches and a lot of frustration, I would recommend these to any one.

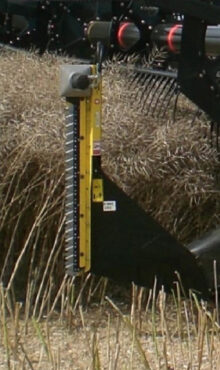

Sabre Vertical Crop Divider Cutter mounted

Joe. K Napolean and North Dakota, USA

Fred W St Cloud from Minnesota, USA

Sabre Vertical Crop Divider Beneifts

Prevents hairpinning, crop loss, and cutter plugging.

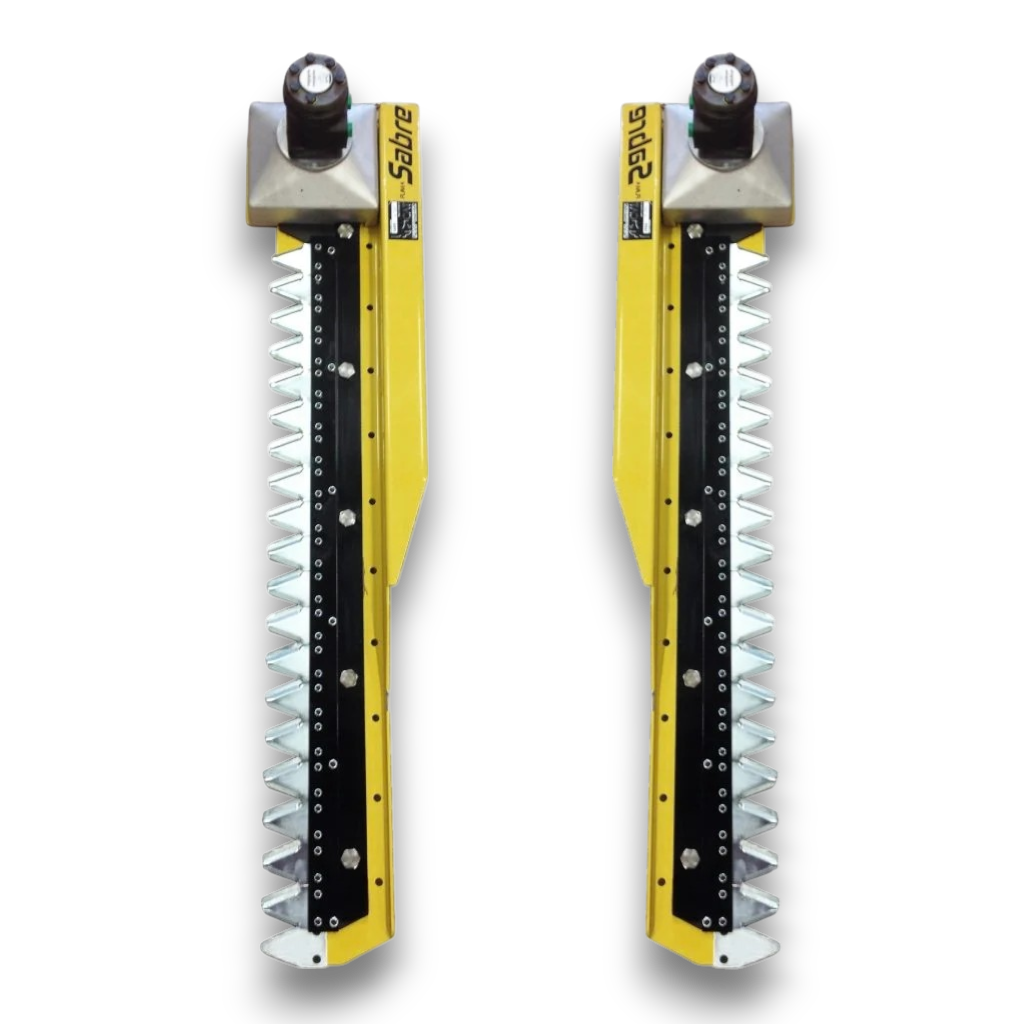

Available in left and right hand versions.

Includes a comprehensive operator parts manual.

Universal fit on all combine and swather headers.

Includes a header safety decal.

Knife sickle sections, probably the area of highest wear, are secured by capscrews rather than rivers, making sickle replacement easy.

Sealed bearings and self-lubricating hydraulic motor eliminates greasing.

Hard plating and high quality paint has been used throughout to eliminate corrosion.

Cutter Bar height can be easily adjusted to suit your machine.

3.0 cu. In/rev. High Torque Hydraulic motor
Cutting Length 38″ with 38 – 2″ removable sections
Overall height Adjustable
Knives: 2 knives with 19 replaceable sickle sections on each.

FAQ

What is the Weight of Unit?

70 Lbs. – Packaged Dimensions 12″ x 48″ x 12″

What is the Cutting Length?

38″ – 19 x 2″ sections on one stationary knife, and 19 x 2” on one moving knife

I did not get all the mounting pieces.

(see page 15 FUMA Sabre Crop Divider Operator’s Manual & Parts List)

The machine now comes with 4 ft. of 2″ x 2″ tubing and a 4 ft. flat bar. You have to fabricate the mounting. The packaging changed, but in the manual the mounting weldments have not been deleted because of the large number of machines in the field and they do change owners, which allows identification of parts. The manual has been updated to reflect all changes including our suggestion for fabricating the mounting brackets.

Where do I hook the hydraulics up?

Usually you tap in on the return of the reel or the return of the belt. The orbit motor on the FUMA Sabre Crop Divider requires about 3 gallons at 200 psi max, so to date we have not run into a swather that does not have that capacity. Optimum Cutting Speed of the FUMA Sabre Crop Divider is 80 – 100 RPM.

Note: You can count the section moving by eye.

e.g.:
The Co-op 550 Swather only had enough hydraulics for the lift cylinders of the table. The user was able to plumb a FUMA Sabre Crop Divider into the 550 so that when the table was down the lift cylinder hydraulics would run the FUMA Sabre Crop Divider and when he needed to lift the table, the fluid was used in the cylinder and the FUMA Sabre Crop Divider stopped running. This was an either / or situation, but it worked.

The picture on the brochure shows the FUMA Sabre Crop Divider below the table knife?

No, the FUMA Sabre Crop Divider is not a plough. The photographer set up the picture to highlight the FUMA Sabre Crop Divider. The bottom of the FUMA Sabre Crop Divider should be just above the table knife and vertical, or tilted forward slightly.

How do I lubricate the machine?

All contact surfaces are greased when assembled and should be inspected and greased regularly – see the FUMA Sabre Crop Divider Operator’s Manual & Parts List.

How long has the FUMA Sabre Crop Divider been in service?

The FUMA Sabre Crop Divider has been in service since 1983.

Is there an independent evaluation done on the FUMA Sabre Crop Divider?

Yes. PAMI (Prairie Agricultural Machinery Institute) conducted an independent evaluation in 1985. The results were excellent. The PAMI Report #477 is available. We have copies. The FUMA Sabre Crop Divider has been tested and is an authorised add on by John Deere, Hesston, and MacDon.

Are the sections a standard size?

No. They are 2″ sickle sections manufactured in Austria to the specifications of the FUMA Sabre Crop Divider. They are bolted and not riveted.

Are the sections smooth or serrated?

Smooth.

How does it compare to other cutters on the market?

The FUMA Sabre Crop Divider is the John Deere and our competitors are the Belarus.
The FUMA Sabre Crop Divider’s cam drive is trouble-free and the FUMA Sabre Crop Divider cuts a full 38″ length. Our competitor’s chain drive pulls the stock through 2 or 3 cutting points only.
The FUMA Sabre Crop Divider allows your swather to travel faster and cut cleaner. The cost of one machine can be recovered in a single season due to the increased yield.

What is the make and model number of the hydraulic motor?

We use the following:

Charlyn (H) Series – #101-1001
Or Dan Foss – #151-2121
Or Ross – #MK021310AAAB

The motors are interchangeable mount and capacity but if parts are required you should specify the make and the model to obtain the correct parts from any hydraulic repair depot.

Shipping & Warranty

Ordering/Shipping

This page contains information on how to place an order as well as links to common ordering questions.

Please note orders for our US customers will ship from our US warehouse in Pembina, North Dakota, and orders for our Canadian and International customers will ship from our Canadian main warehouse in Winnipeg, Manitoba.

If you cannot find the information that you need on these pages, please contact our Customer Support department at +1 (866) 792-8437

Warranty

Canadian Agri Technologies Inc. warrants to the original retail purchaser that should this product or any part there of, under ordinary and normal residential use, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be replaced. Under the terms of the Warranty, Canadian Agri Technologies Inc. may opt to repair, replace, or issue a refund for products that are defective or have sustained damage in shipping. Replacement of products or parts subject to normal wear and tear is the responsibility of the customer.

To obtain the replacement within the terms of this warranty, return the defective or damaged product only after you call and receive a Return Authorization from Canadian Agri Technologies Inc. Return the item or product (shipping prepaid) to: Canadian Agri Technologies Inc., 47 Halparin Drive, Winnipeg, MB, Canada R3X 1Z9, together with proof of warranty coverage (e.g. dated bill of sale) and a new part(s) or product will be shipped to you. Canadian Agri Technologies Inc. will pay the packaging, shipping and handling costs to ship the replacement part(s) or product to you.

This warranty does not apply to any product or part thereof which in the opinion of the Company has been damaged through alteration, improper installation, mishandling, misuse (exceeding stated hydraulic specifications), neglect or accident. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER OF THE PRODUCT.

This warranty is in lieu of all other expressed warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY, ANY ABILITY FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANT. ABILITY MUST BE BROUGHT WITHIN A PERIOD OF 12 MONTHS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGE FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER.

Additional Information

Weight	70 lbs
Dimensions	49 × 12 × 3 in
Left or Right	Both, Left, Right
